Agilent 3070 platform test solved solutions

major characteristics

characteristics 1

Half bank, Full bank Vacuum, pneumatic fixtures.

characteristics 2

Short line fixture, wireless fixture

characteristics 3

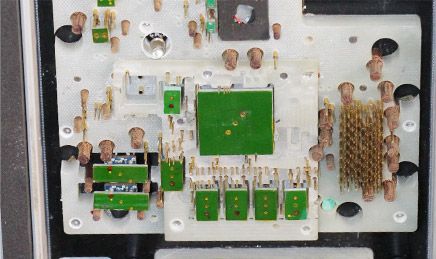

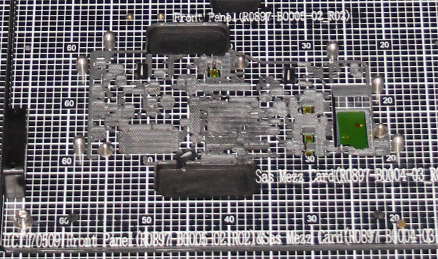

Complex plug-in card (connector mutual plug-in and connector needles),
Loopback test technology

characteristics 4

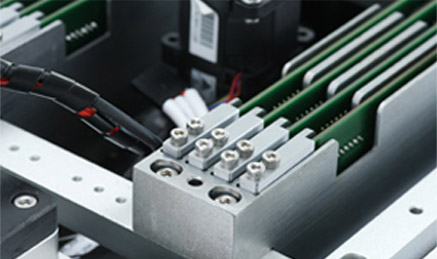

Complex backplane test technology

characteristics 5

Dual Stage、Dual Well fixtures

fixtures advantages

•Vacuum fixture

- Simple structure, easy maintenance

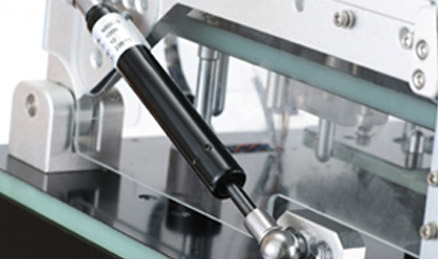

•Pneumatic fixture

－Fixtures press down steadily, reduce the transfiguration test risks.　　　　－Open structure has better heat sinking performance
－Fixtures press down slowly, with little shock to UUT.　　　　　　　　－Stable structure with long life. 　　　　

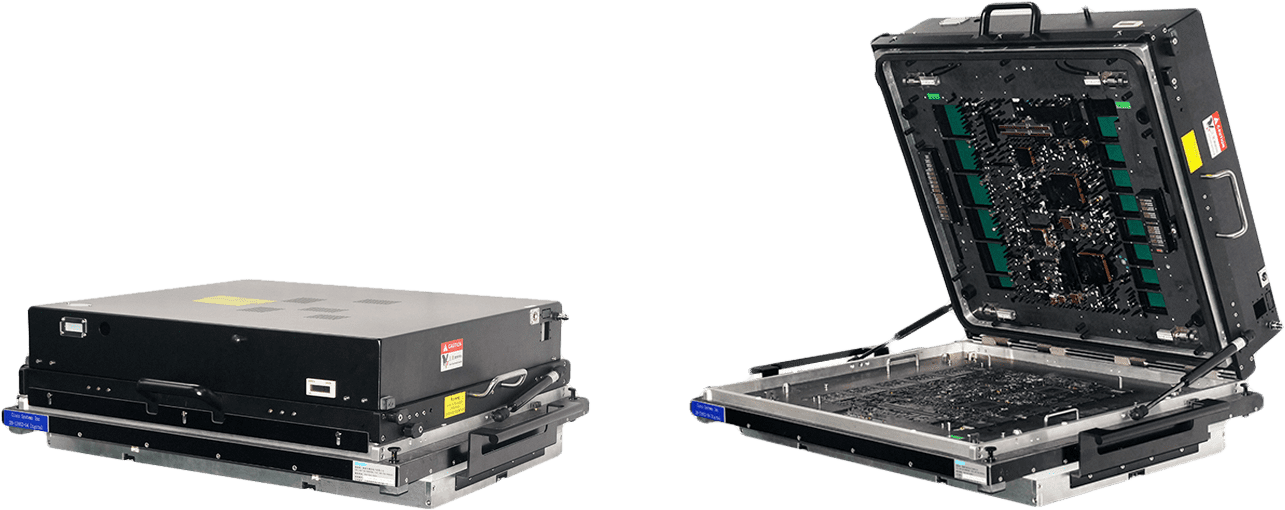

Vacuum fixture essential information

Design StandardStandard KIT carrier plate milling relief technology hole shrinkage technology
Vacuum requirementsvacuum degree:0.6-0.8inHg
Overall dimension of fixtureHalf bank:535(L)*457(W)*190(H)mm，Full bank:898(L)*457(W)*190(H)mm
Support maximum measurable PCB sizeHalf bank:350(L)*350(W)mm，Full bank:700(L)*500(W)mm
Support maximum measurable pointsHalf bank: 2200pcs，Full bank: 4400pcs
KGHalf: 25-45kg，Full: 65-120kg
ColourBlack & white
Main materialsaluminium alloy

Basic information of pneumatic fixture

Design StandardStandard KIT carrier plate milling relief technology hole shrinkage technology
Air pressure requirementsgas pressure:0.6-0.7Mpa
Overall dimension of fixtureHalf bank:535(L)*520 (W)*330(H)mm，Full bank:873(L)*590(W)*330(H)mm
Support maximum measurable PCB sizeHalf bank:350(L)*350(W)mm，Full bank:600(L)*400(W)mm
Support maximum measurable pointsHalf bank: 2200pcs，Full bank: 4400pcs
KGHalf: 40-85kg，Full: 100-140kg
ColourBlack & white
Main materialsaluminium alloy
