Radio frequency test solved solution

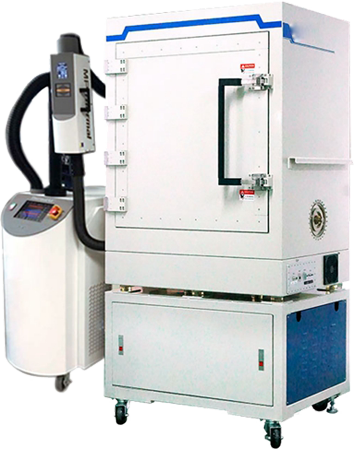

Radio frequency shielding chamber is applied to the 5G test

● Radio frequency shielding chamber is specially designed for the test of mmWave OTA between 0.8~60GHz, and is able to support any DUT with dimension below 12”.
● Two- axis locator elevation angle and 360 degrees azimuth angle rotate in order to measure the antenna pattern. Super high
speed scan antenna ball. The locators of USB, RS232 and ethernet are controlled via SCPI or hexadecimal instruction set.
● The optional heat box could be used to the extreme condition test, and the work temperature range is -40~80±1℃.

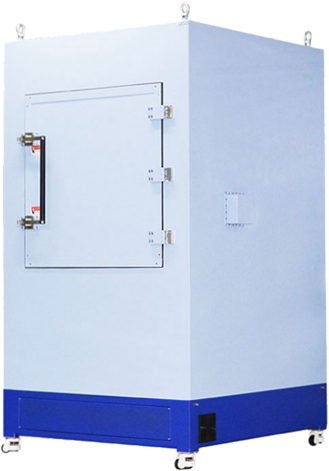

Radio frequency shielding chamber is applied to laptop test.

● The far field test of 5G mmwave OTA is applied to consumer electronics equipment.
● Suitable for the test of the equipment below 15 inches.
● Laboratory test equipment.

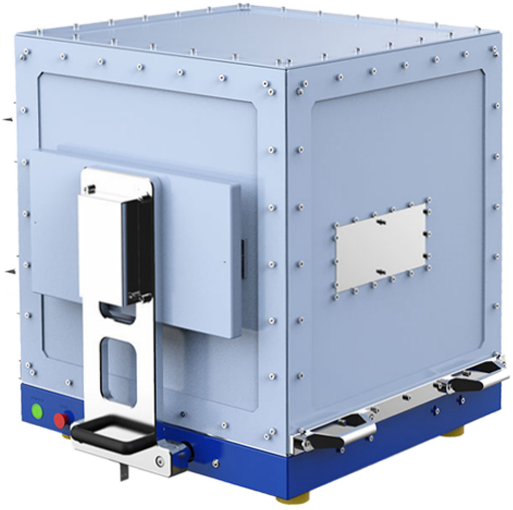

Radio Frequency shielding chamber is applied to the 5G mass production test.

● The far field test of 5G mmwave OTA is applied to consumer electronics product.
● Suitable for the test of the equipment below 9 inches.
● Production line test equipment。
